重载链接器专业制造商
R
PROFESSIONAL MANUFACTURER OF HEAVY DUTY CONNECTORS

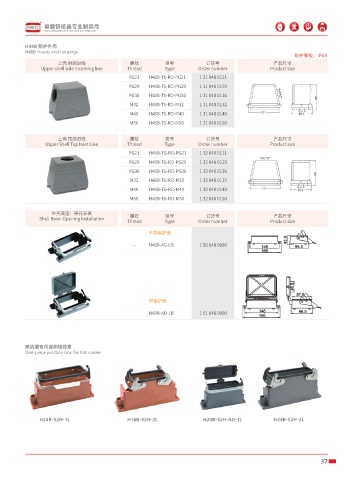

H48B 防护外壳
H48B Hoods and housings
防护等级：IP65
上壳 侧面进线 螺纹 型号 订货号 产品尺寸
Upper shell side incoming line Thread Type Order number Product size
PG21 H48B-TS-RO-PG21 1 31 048 0121
PG29 H48B-TS-RO-PG29 1 31 048 0129
PG36 H48B-TS-RO-PG36 1 31 048 0136
M32 H48B-TS-RO-M32 1 31 048 0132
M40 H48B-TS-RO-M40 1 31 048 0140
M50 H48B-TS-RO-M50 1 31 048 0150
上壳 顶部进线 螺纹 型号 订货号 产品尺寸
Upper Shell Top Inlet Line Thread Type Order number Product size
PG21 H48B-TG-RO-PG21 1 32 048 0121
PG29 H48B-TG-RO-PG29 1 32 048 0129
PG36 H48B-TG-RO-PG36 1 32 048 0136
M32 H48B-TG-RO-M32 1 32 048 0132
M40 H48B-TG-RO-M40 1 32 048 0140
M50 H48B-TG-RO-M50 1 32 048 0150
外壳底座：开孔安装
螺纹 型号 订货号 产品尺寸
Shell Base: Opening Installation
Thread Type Order number Product size
不带保护盖
-- H48B-AG-LB 1 50 048 0000
带保护盖
H48B-AD-LB 1 51 048 0000
热流道专用连体接线盒
One-piece junction box for hot runner
H24B-S2H-1L H16B-S2H-2L H24B-S2H-AD-1L H24B-S2H-2L
