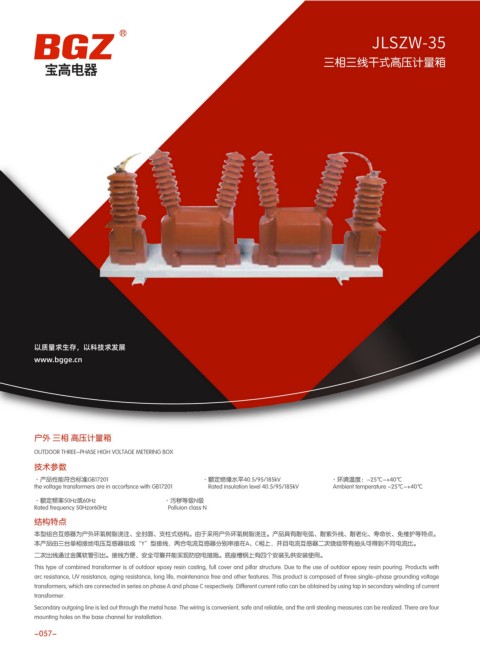

JLSZW-35 JLSZW-35

三相三线干式高压计量箱 三相三线干式高压计量箱 高压电力产品选型手册
Ҳݽ٫ಹ

ሙಒࠣحקൻԛ حק؋ൈಣ׈ੀḤ حק׮໗ק׈ੀ
حק׈ੀб ሙಒࠩቆކ ͐͜͠ȹ̻͊̽ͅḤḤ͎ͰͰ΂ͿͮͰΆḤḤͰ͹΀΀ḤḤͮͻͱḤḤͿͮ΁ͲͱḤḤͼ΂΁ͽ΂΁̵̶͎ͣ
ͮ͟΁ͲͱḤͰ΂ͿͿͲͻ΁ḤͿͮ΁Ͷͼ̵̶͎ ͐͹ͮ΀΀ḤͰͼͺͯͶͻͮ΁Ͷͼͻ ͮ͟΁ͲͱḤḤ΀͵ͼͿ΁̺΁ͶͺͲḤḤ ͮ͟΁ͲͱḤḤͱΆͻͮͺͶͰḤḤ
̻̽̿č͠Ď ̻̽͂ ΁͵ͲͿͺͮ͹ḤḤͰ΂ͿͿͲͻ΁̵̶͎͘ Ͱ΂ͿͿͲͻ΁̵̶͎͘
̼̺̼͂͂̈́͂͂ ̾̽̽͹Ͷͻ ̿͂̽͹Ͷͻ
̼̺̼̾̽̽͂̿̽̽͂ ̵̶̻̽̿͠ ̾͂̽͹Ͷͻ ̀̈́͂͹Ͷͻ
̼̀̽̽͂ ̻̽͂ ̾̽ ࠇ ̾͂ ̾̽ ࠇ ̾͂ ̻̀̾͂ ̽ͅ
̼̺̼́̽̽͂̓̽̽͂ ̓̀ ̾̀̽
ሙಒࠣحקൻԛ
حק׈࿢б ሙಒࠩቆކ ͐͜͠ȹ̻͊̽ͅḤḤ͎ͰͰ΂ͿͮͰΆḤḤͰ͹΀΀ḤḤͮͻͱḤḤͿͮ΁ͲͱḤḤͼ΂΁ͽ΂΁̵̶͎ͣ ؽՑಣࠞཋൻԛ
ͮ͟΁ͲͱḤ΃ͼ͹΁ͮʹͲḤḤͿͮ΁Ͷͼ̵̶͎ ͐͹ͮ΀΀ḤḤͰͼͺͯͶͻͮ΁Ͷͼͻ ͙ͶͺͶ΁ͶͻʹḤḤ΁͵ͲͿͺͮ͹ḤḤͼ΂΁ͽ΂΁ḤḤͼͳḤḤ΀ͲͰͼͻͱͮͿΆḤḤ΄ͶͻͱͶͻʹ
̻̽̿ ̻̽͂
̼̻̀̀̽̾ ̻̽̿ ̀̽ ̓̽ ̀͂̽
̼̻̀͂̽̾ ̻̽͂

外形及安装尺寸

以质量求生存，以科技求发展
www.bgge.cn

户外 三相 高压计量箱
OUTDOOR THREE-PHASE HIGH VOLTAGE METERING BOX

技术参数
·产品性能符合标准GB17201 ·额定绝缘水平40.5/95/185kV ·环境温度：-25℃~+40℃
the voltage transformers are in accorfsnce with GB17201 Rated insulation level 40.5/95/185kV Ambient temperature -25℃~+40℃
·额定频率50Hz或60Hz ·污秽等级N级
Rated frequency 50Hzor60Hz Polluion class N
结构特点

本型组合互感器为户外环氧树脂浇注、全封面、支柱式结构。由于采用户外环氧树脂浇注。产品具有耐电弧、耐紫外线、耐老化、寿命长、免维护等特点。
本产品由三台单相接地电压互感器组成“Y”型接线，两合电流互感器分别串接在A、C相上，并且电流互感器二次绕组带有抽头可得到不同电流比。
二次出线通过金属软管引出。接线方便、安全可靠并能实现防窃电措施。底座槽钢上有四个安装孔供安装使用。
This type of combined transformer is of outdoor epoxy resin casting, full cover and pillar structure. Due to the use of outdoor epoxy resin pouring. Products with
arc resistance, UV resistance, aging resistance, long life, maintenance free and other features. This product is composed of three single-phase grounding voltage
transformers, which are connected in series on phase A and phase C respectively. Different current ratio can be obtained by using tap in secondary winding of current
transformer.
Secondary outgoing line is led out through the metal hose. The wiring is convenient, safe and reliable, and the anti stealing measures can be realized. There are four
mounting holes on the base channel for installation.

-057- -058-
